Configuring the Tests

1. Once the Apache Zookeeper component is added successfully, you will be redirected to the Components page (see Figure 1). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

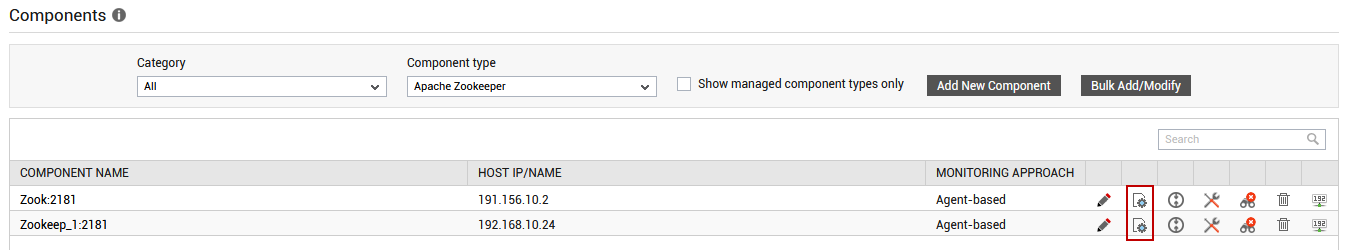

   Figure 1 : Listing the newly added Apache Zookeeper component

2. To collect the performance metrics, you may need to configure the tests that are mapped to the Apache Zookeeper component. To configure the tests that need manual configuration, click on the icon in Figure 1.

3. Figure 2 then appears where the list of unconfigured tests will be listed in the UNCONFIGURED TESTS list box.

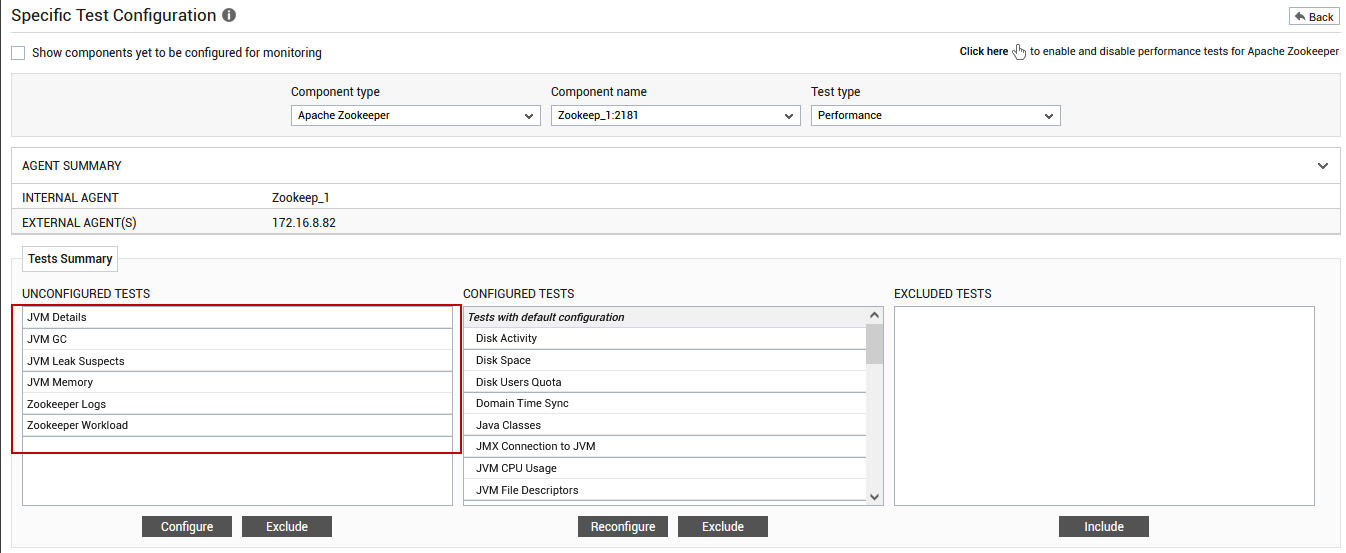

   Figure 2 : The list of unconfigured tests for the Apache Zookeeper

4. Click on any of the tests to configure it. For instance, if you click on the Zookeeper Logs test, Figure 3 will appear.

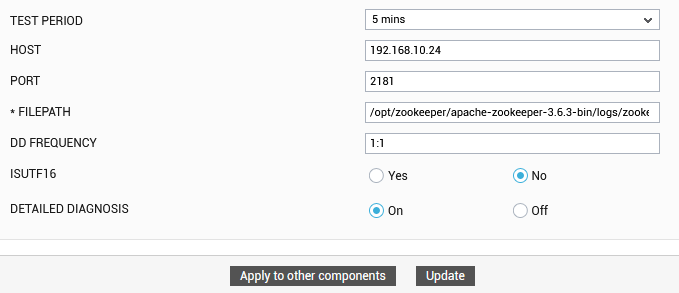

   Figure 3 : Configuring the Zookeeper Logs test

   To know how to configure this test, refer to Zookeeper Logs Test.

5. Now, try to configure the Zookeeper Workload test. Figure 4 will then appear.

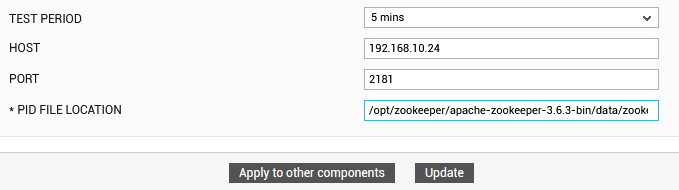

   Figure 4 : Configuring the Zookeeper Workload test

   To know how to configure this test, refer to Zookeeper Workload Test.

6. Click on the JVM Memory Test to configure it. Configuring this test will automatically configure all the other unconfigured tests for the Apache Zookeeper component.
