Managing the Atlantis ILIO

The eG Enterprise cannot automatically discover the Atlantis ILIO server. This implies that you need to manually add the component for monitoring. Remember that components manually added are managed automatically. To add an Atlantis ILIO component, do the following:

  1. Log into the eG administrative interface.
  2. Follow the Components -> Add/Modify menu sequence in the Infrastructure tile of the Admin menu.

  3. In the COMPONENT page that appears next, select Atlantis ILIO as the Component type. Then, click the Add New Component button. This will invoke .

    Fig1

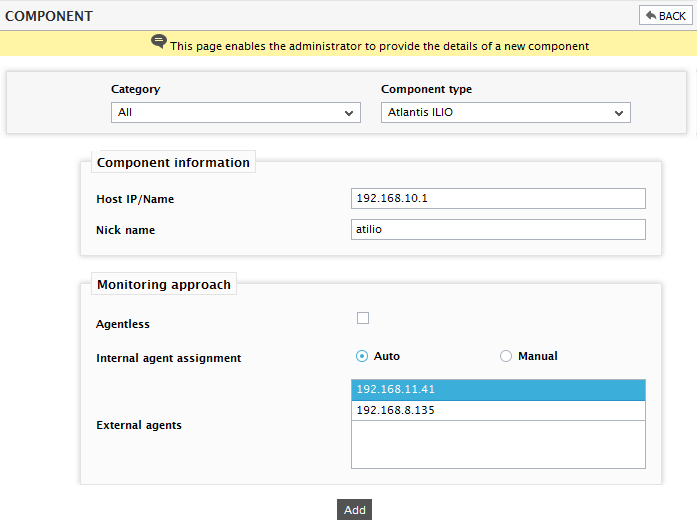

    Figure 1 : Adding an Atlantis ILIO server

  4. Specify the Host IP and the Nick name of the Atlantis ILIO server in Figure 1. Then click the Add button to register the changes.
  5. Next, signout of the eG administrative interface.
