Monitoring the Bluecoat ProxySG

Figure 3 shows the dedicated Bluecoat ProxySG monitoring model developed by eG Enterprise .

Layers associated to Bluecoat ProxySG component

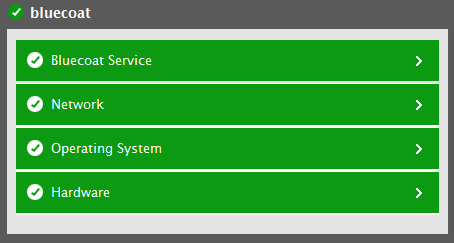

Figure 3 : The layer model of the Bluecoat ProxySG

Every layer of Figure 3 is mapped to a variety of tests which connect to the SNMP MIB and the SNMP traps of the target Bluecoat ProxySG appliance to collect critical statistics pertaining to its performance.
