Configuring the Tests

1. Once the Cisco SG Switch component is added successfully, you will be redirected to the Components page (see Figure 1). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.



   Figure 1 : Listing the newly added Cisco SG Switch component

2. To collect the performance metrics, you may need to configure the tests that are mapped to the Cisco SG Switch component. To configure the tests that need manual configuration, click on the icon in Figure 1.

3. Figure 2 then appears where the list of unconfigured tests will be listed in the UNCONFIGURED TESTS list box.

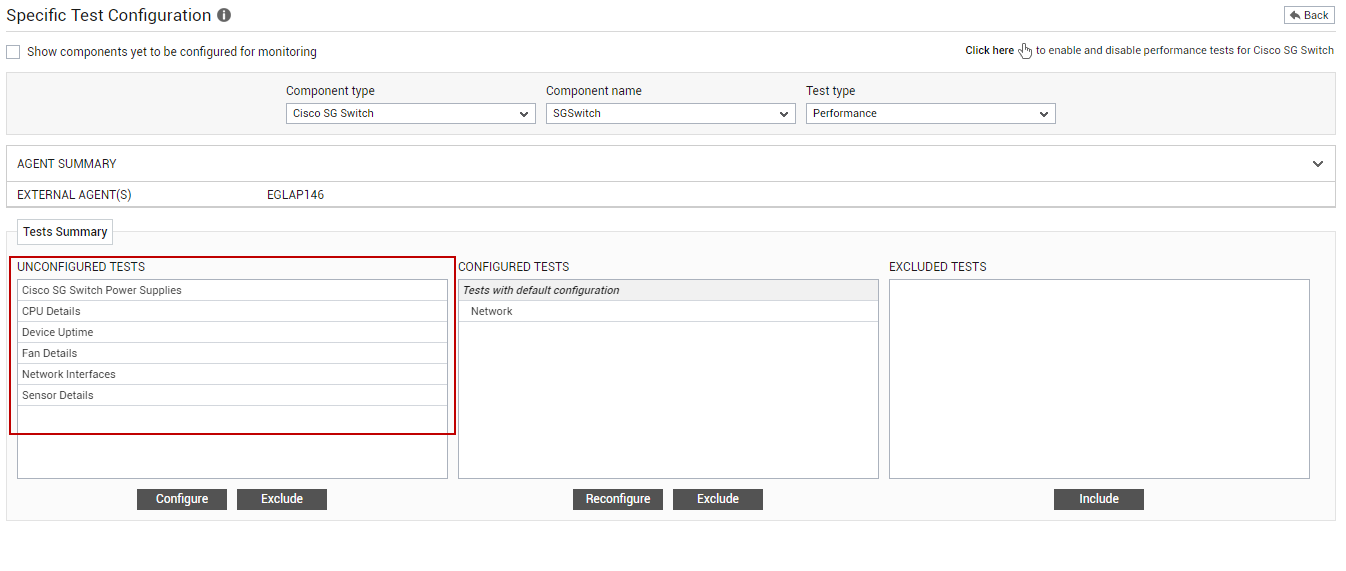

   Figure 2 : The list of unconfigured tests for the Cisco SG Switch

   Click on any of the tests to configure it. For instance, if you click on the Fan Details test, Figure 3 will appear.

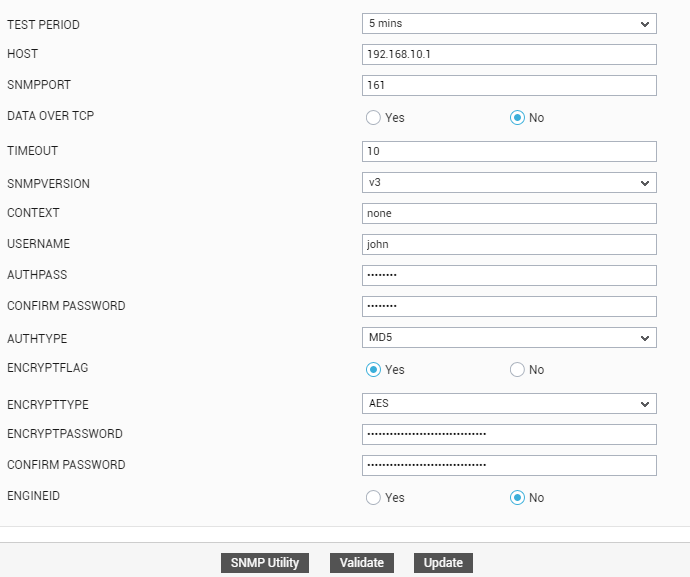

   Figure 3 : Configuring the Fan Details test

   To know how to configure this test, refer to Fan Details Test.

   Click the Update button in Figure 3 to update the test configuration. This will automatically configure all the other unconfigured tests for the Cisco SG Switch component.
