Fabric Interconnect PSUs Test

The Cisco UCS Fabric Interconnects is provided with two front end slots to support Power Supply Units. The failure of a power supply unit, if not readdressed promptly, can cause short to prolonged breaks in the availability of the interconnects. Moreover, a sudden yet steep rise in the power/voltage/current handled by a PSU may not only injure that PSU, but also cause damage to the associated fabric interconnect. To avoid such adversities, the PSUs supported by each fabric interconnect should be periodically monitored.

This test monitors the overall health of each PSU supported by every fabric interconnect and promptly reports abnormalities such as operational issues experienced by the PSUs, critical PSU failures, serious errors in the power/thermal/voltage state of each PSU, and inexplicable surges in the input power/voltage/current of a PSU.

Target of the test : A Cisco UCS Manager

Agent deploying the test : A remote agent

Outputs of the test : One set of results for each PSU in each fabric interconnect managed by the Cisco UCS Manager being monitored.

Configurable parameters for the test
Parameter Description

Test Period

How often should the test be executed.

Host

The IP address of the host for which the test is being configured.

Port

The port at which the specified host listens. By default, it is NULL.

UCS User and
UCS Password

Provide the credentials of a user with at least read-only privileges to the target Cisco UCS Manager.

Confirm Password

Confirm the password by retyping it here.

SSL

By default, the Cisco UCS Manager is SSL-enabled. Accordingly, the SSL flag is set to Yes by default.

Web Port

By default, in most virtualized environments, Cisco UCS Manager listens on port 80 (if not SSL-enabeld) or on port 443 (if SSL-enabled) only. This implies that while monitoring Cisco UCS Manager, the eG agent, by default, connects to port 80 or 443, depending upon the SSL-enabled status of Cisco UCS Manager - i.e., if Cisco UCS Manager is not SSL-enabled (i.e., if the SSL flag above is set to No), then the eG agent connects to Cisco UCS Manager using port 80 by default, and if Cisco UCS Manager is SSL-enabled (i.e., if the SSL flag is set to Yes), then the agent-Cisco UCS Manager communication occurs via port 443 by default. Accordingly, the WebPort parameter is set to default by default.

In some environments however, the default ports 80 or 443 might not apply. In such a case, against the WebPort parameter, you can specify the exact port at which the Cisco UCS Manager in your environment listens, so that the eG agent communicates with that port for collecting metrics from the Cisco UCS Manager.

Detailed Diagnosis

To make diagnosis more efficient and accurate, the eG Enterprise embeds an optional detailed diagnostic capability. With this capability, the eG agents can be configured to run detailed, more elaborate tests as and when specific problems are detected. To enable the detailed diagnosis capability of this test for a particular server, choose the On option. To disable the capability, click on the Off option.

The option to selectively enable/disable the detailed diagnosis capability will be available only if the following conditions are fulfilled:

  • The eG manager license should allow the detailed diagnosis capability
  • Both the normal and abnormal frequencies configured for the detailed diagnosis measures should not be 0.
Measurements made by the test
Measurement Description Measurement Unit Interpretation

Overall status

Indicates the overall status of this PSU in this interconnect.



The States reported by this measure and their corresponding numeric equivalents are described in the table below:

State Numeric Value
Unknown 0
Operable 1
Inoperable 2
Degraded 3
Powered-off 4
Power-problem 5
Removed 6
Voltage-problem 7
Thermal-problem 8
Performance-problem 9
Accessibility-problem 10
Identity-unestablishable 11
Bios-post-timeout 12
Disabled 13
Fabric-conn-problem 51
Fabric-unsupported-conn 52
Config 81
Equipment-problem 82
Decommissioning 83
Chassis-limit-exceeded 84
Discovery 101
Discovery-failed 102
Identify 103
Post-failure 104
Upgrade-problem 105
Peer-comm-problem 106
Auto-upgrade 107

Note:

By default, this measure reports the above-mentioned States while indicating the overall status of a PSU. However, in the graph of this measure, states will be represented using their corresponding numeric equivalents only.

The detailed diagnosis of this measure provides the Time, ID, PID, Revision, Serial Number and Vendor attributes of the Fabric Interconnect PSU.

Operability

Indicates the current operating state of this PSU in this fabric interconnect.



The States reported by this measure and their corresponding numeric equivalents are described in the table below:

State Numeric Value
Unknown 0
Operable 1
Inoperable 2
Degraded 3
Powered-off 4
Power-problem 5
Removed 6
Voltage-problem 7
Thermal-problem 8
Performance-problem 9
Accessibility-problem 10
Identity-unestablishable 11
Bios-post-timeout 12
Disabled 13
Fabric-conn-problem 51
Fabric-unsupported-conn 52
Config 81
Equipment-problem 82
Decommissioning 83
Chassis-limit-exceeded 84
Discovery 101
Discovery-failed 102
Identify 103
Post-failure 104
Upgrade-problem 105
Peer-comm-problem 106
Auto-upgrade 107

Note:

By default, this measure reports the above-mentioned States while indicating the operational state of a PSU. However, in the graph of this measure, states will be represented using their corresponding numeric equivalents only.

Performance state

Indicates the current performance state of this PSU in this fabric interconnect.



The States reported by this measure and their corresponding numeric equivalents are described in the table below:

State Numeric Value
Unknown 0
Ok 1
Upper-non-recoverable 2
Upper-critical 3
Upper-non-critical 4
Lower-non-critical 5
Lower-critical 6
Lower non-recoverable 7
Not Available -5

Note:

By default, this measure reports the above-mentioned States while indicating the performance state of a PSU. However, in the graph of this measure, states will be represented using their corresponding numeric equivalents only.

Power state

Indicates the current power state of this PSU in this fabric interconnect.



The States reported by this measure and their corresponding numeric equivalents are described in the table below:

State Numeric Value
Unknown 0
On 1
Test 2
Off 3
Online 4
Offline 5
Offduty 6
Degraded 7
Power-save 8
Error 9

Note:

By default, this measure reports the above-mentioned States while indicating the power state of a PSU. However, in the graph of this measure, states will be represented using their corresponding numeric equivalents only.

Presence state

Indicates the current state of this PSU in this fabric interconnect.



The States reported by this measure and their corresponding numeric equivalents are described in the table below:

State Numeric Value
Unknown 0
Empty 1
Equipped 10
Missing 11
Mismatch 12
Equipped-not-primary 13
Equipped-identity-unestablishable 20
Inaccessible 30
Unauthorized 40

Note:

By default, this measure reports the above-mentioned States while indicating the current state of a PSU. However, in the graph of this measure, states will be represented using their corresponding numeric equivalents only.

Thermal state

Indicates the current thermal state of this PSU in this fabric interconnect.



The States reported by this measure and their corresponding numeric equivalents are described in the table below:

State Numeric Value
Unknown 0
Ok 1
Upper-non-recoverable 2
Upper-critical 3
Upper-non-critical 4
Lower-non-critical 5
Lower-critical 6
Lower non-recoverable 7

Note:

By default, this measure reports the above-mentioned States while indicating the current thermal state of a PSU. However, in the graph of this measure, states will be represented using their corresponding numeric equivalents only.

Voltage state

Indicates the current voltage state of this PSU in this fabric interconnect.



The States reported by this measure and their corresponding numeric equivalents are described in the table below:

State Numeric Value
Unknown 0
Ok 1
Upper-non-recoverable 2
Upper-critical 3
Upper-non-critical 4
Lower-non-critical 5
Lower-critical 6
Lower non-recoverable 7

Note:

By default, this measure reports the above-mentioned States while indicating the current voltage state of a PSU. However, in the graph of this measure, states will be represented using their corresponding numeric equivalents only.

Input current

Indicates the input current received by this PSU in this fabric interconnect.

Amps

An abnormally high or low value of current may cause severe damage to the Fabric Interconnect PSUs.

Input power

Indicates the input power received by this PSU in this fabric interconnect.

Watts

An abnormally high or low value of input power may cause severe damage to the Fabric Interconnect PSUs.

Input voltage

Indicates the input voltage received by this PSU in this fabric interconnect.

Volts

An abnormally high or low value of input voltage may cause severe damage to the fabric interconnect PSUs.

The detailed diagnosis of the Overall status measure provides the Time, ID, PID, Revision, Serial Number and Vendor attributes of the fabric interconnect PSU.

layer 2 test 1 measure 2 dd

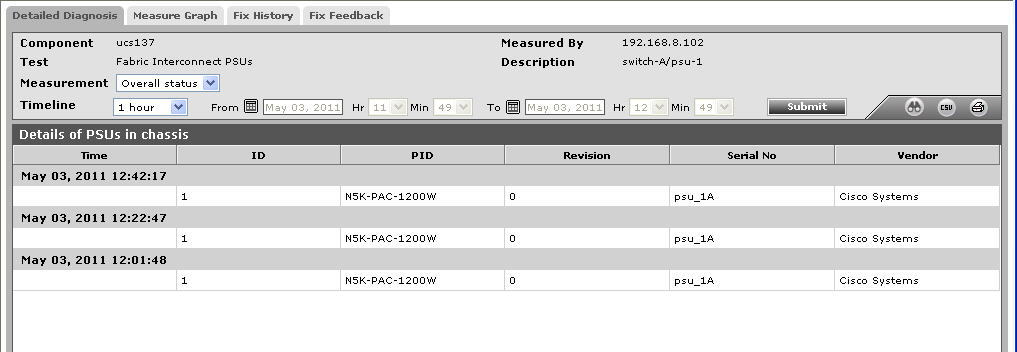

Figure 1 : The detailed diagnosis of the Overall status measure of the Fabric Interconnect PSUs test
