Configuring Tests for DHCP Server

Follow the steps below to configure tests for the managed DHCP server:

1. Once the DHCP component is added to the eG Enterprise system, Figure 1 will appear displaying the component that was just added.

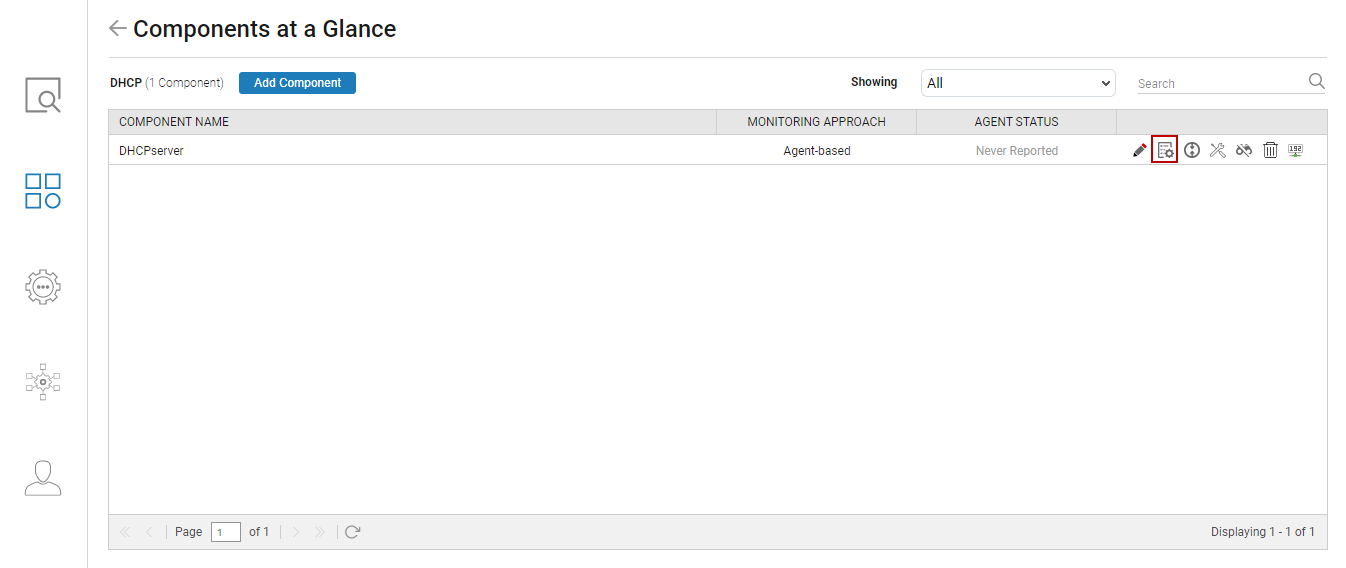

   Figure 1 : The newly added DHCP component

2. To configure tests for this component, click on the icon corresponding to it in Figure 1. Figure 2 will then appear displaying the tests configured by default and the unconfigured tests for this component.

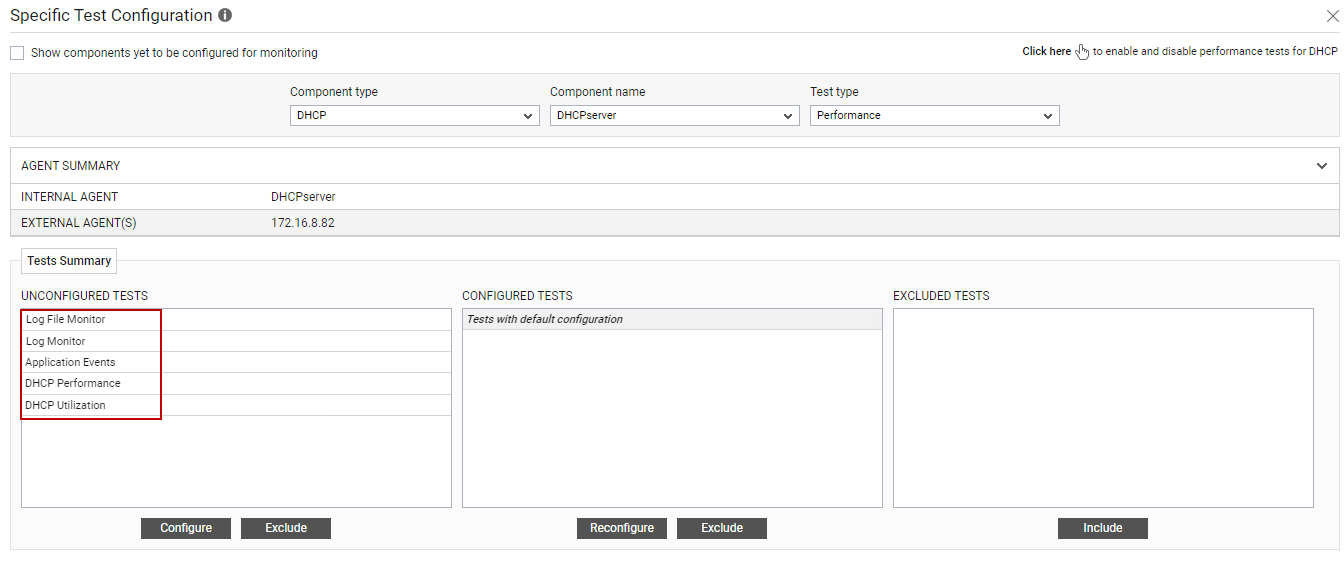

   Figure 2 : The list of unconfigured tests for the DHCP component

3. From the UNCONFIGURED TESTS list, select the DHCP Performance test and click on the Configure button below to configure it. Figure 3 will then appear.

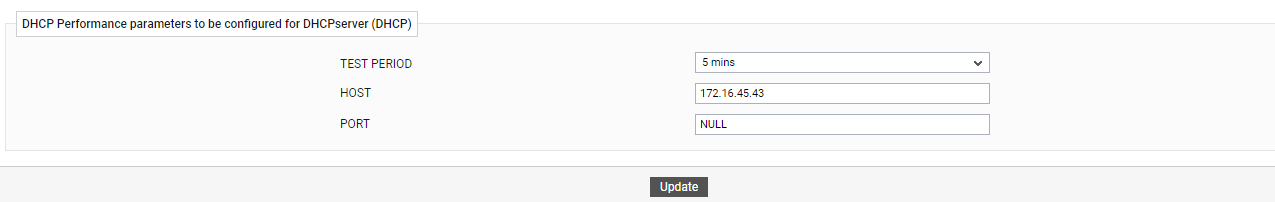

   Figure 3 : Configuring the DHCP Performance test

   Refer to DHCP Performance Test for more details on how to configure this test.

4. Once you configure the test, click on the Update button to save the changes. Doing so will automatically configure all the other tests listed in the UNCONFIGURED TESTS box of Figure 2.

You can now proceed to view the performance results that eG reports for the managed DHCP server by switching to / logging into the eG monitoring console.
