The Network Layer

The tests associated with the Network layer reflect the status of network connectivity to and from the IVE system, the bandwidth usage of the interfaces supported by the system, and the uptime of the system.

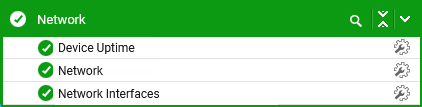

Figure 1 : The tests associated with the Network layer

All the tests in Figure 1 have been dealt in the Monitoring Cisco Routers document.
