Configuring the Tests

1. Once the Microsoft FTP component is added successfully, you will be redirected to the Components page (see Figure 1). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

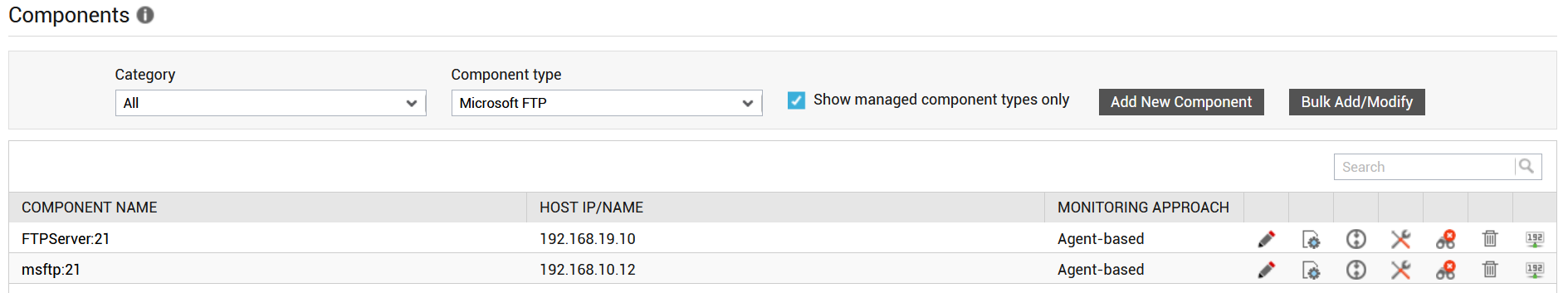

   Figure 1 : Listing the newly added Microsoft FTP component

2. To collect the performance metrics, you may need to configure the tests that are mapped to the Microsoft FTP component. To configure the tests that need manual configuration, click on the icon in Figure 1.

3. Figure 2 then appears where the list of unconfigured tests will be listed in the UNCONFIGURED TESTS list box.

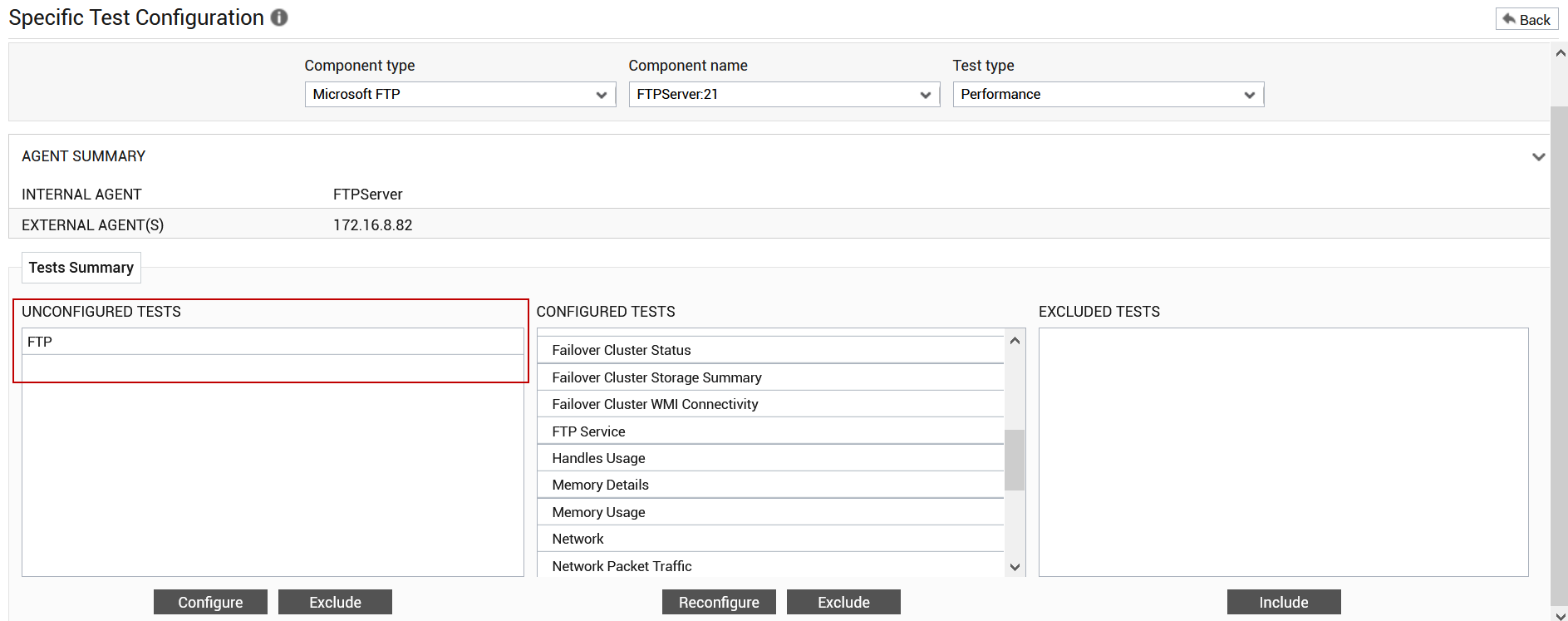

   Figure 2 : The list of unconfigured tests for the Microsoft FTP server

   Click on the FTP test to configure it. Figure 3 will then appear.

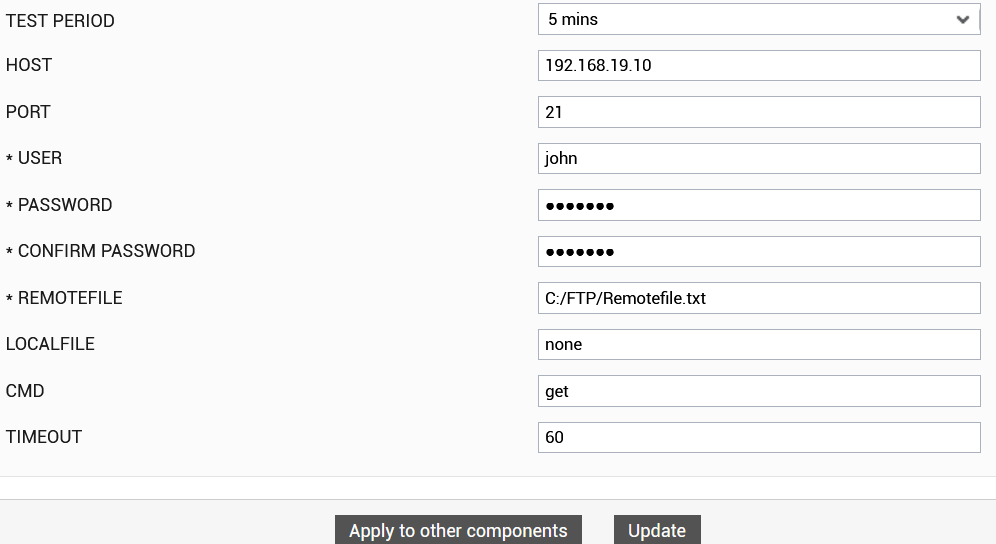

   Figure 3 : Configuring the FTP test

   To know how to configure this test, refer to FTP Test.

   Click the Update button in Figure 3 to update the test configuration.
