Administering eG Manager to work with Microsoft Proxy server

To do the above, do the following:

1. Log into the eG administrative interface.

2. If a Microsoft Proxy server is already discovered, then directly proceed towards managing it using the components - manage/unmanage page (Infrastructure -> Components -> Manage/Unmanage). However, if it is yet to be discovered, then run discovery (Infrastructure -> Components -> Discover) to get it discovered or add the Microsoft Proxy server manually using the components page (Infrastructure -> Components -> Add/Modify). Remember that components manually added are managed automatically. Discovered components, however, are managed using the components - manage/unmanage page. Figure 1 and Figure 2 clearly illustrate the process of managing an Microsoft  Proxy server.



   Figure 1 : Viewing the list of unmanaged Microsoft Proxy servers

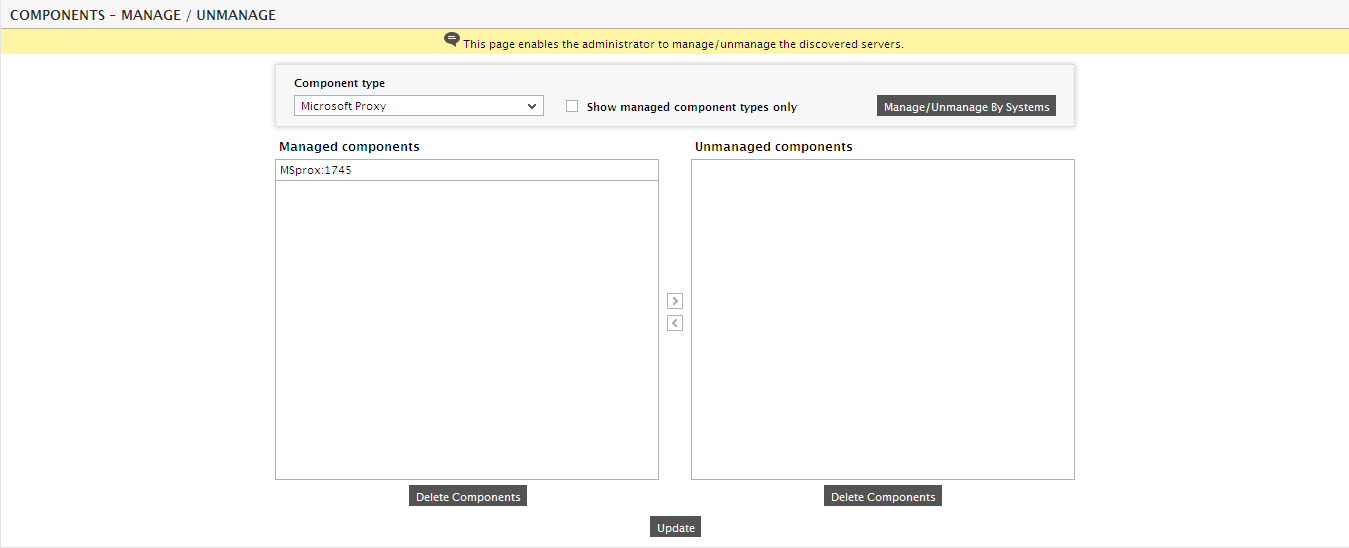

   Figure 2 : Managing an Micosoft Proxy server

3. Next, sign out of the eG administrative interface. Then Figure 3, appears prompting you to configure the Windows Processes test.

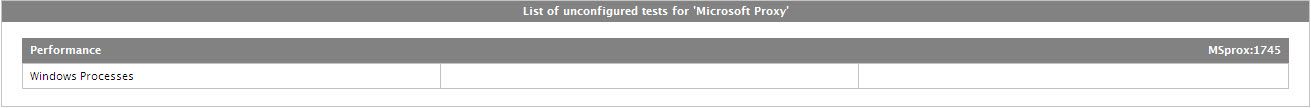

   Figure 3 : List of unconfigured tests for the Microsoft Proxy

4. Next, click on the Windows Processes test to configure it. Refer to the Monitoring Windows and Unix Servers document to know more about how to configure the Windows Processes test.
5. Once the Windows Processes test is configured, signout of the eG administrative interface.
