Adding the SAP BTP Neo Environment

eG Enterprise cannot auto-discover SAP BTP Neo Environment. This is why, you need to manually add a SAP BTP Neo Environment component to the eG Enterprise to monitor it. The steps for manually adding a SAP BTP Neo Environment component are detailed below:

  1. Login to the eG admin interface.
  2. Follow the Infrastructure -> Components -> Add/Modify menu sequence.
  3. In the page that appears next, select SAP BTP Neo Environment as the Component type. Then, click the Add New Component button.

  4. Figure 1 will then appear.

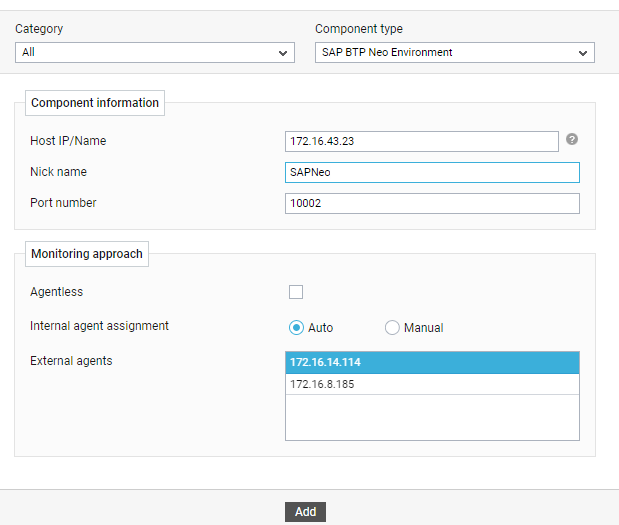

    Figure 1 : Adding a SAP BTP Neo Environment for monitoring

  5. In Figure 1, specify the Host IP/Name and the Nick name for the SAP BTP Neo Environment component.

  6. In the Port number text box, specify the port on which the SAP BTP Neo Environment communicates. By default, this is 10002.

  7. If you are monitoring the target SAP BTP Neo Environment in an agent-based manner, just select an external agent from the External agents list box.

  8. Finally, click the Add button to add the component to the eG Enterprise system.

  9. Once the component is added, proceed to configure the tests for the component.
