Adding the Swift AMH JBoss

eG Enterprise cannot auto-discover Swift AMH JBoss. This implies that you need to manually add the component for monitoring. The steps for manually adding the Swift AMH JBoss component are detailed below:

  1. Login to the eG administrative interface.

  2. Click on the Add Component button in the right corner of the Components at a Glance page that appeared or follow the Infrastructure -> Components -> Add/Modify menu sequence.

  3. Then, select the Swift AMH JBoss as the Component type and click the Add New Component button. Figure 1 will then appear.

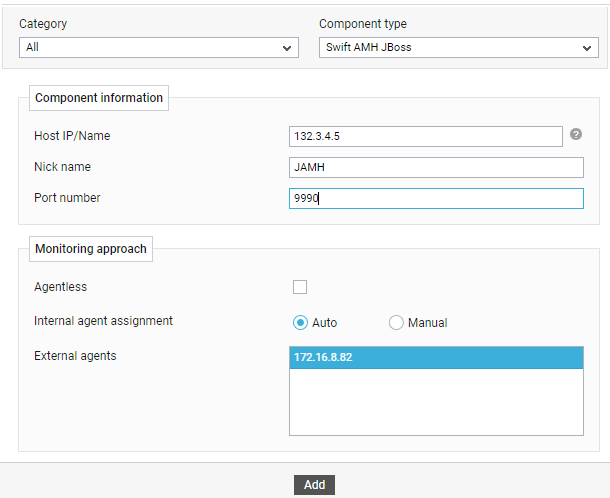

    Figure 1 : Adding a Swift AMH JBoss for monitoring

  4. In Figure 1, provide the Host IP/Name of the Swift AMH JBoss to be monitored. Then, provide a Nick name for the server.

  5. Finally, click the Add button to add the server for monitoring.

  6. Once the Swift AMH JBoss component is added successfully, you will be again redirected to the Components page (see Figure 2). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

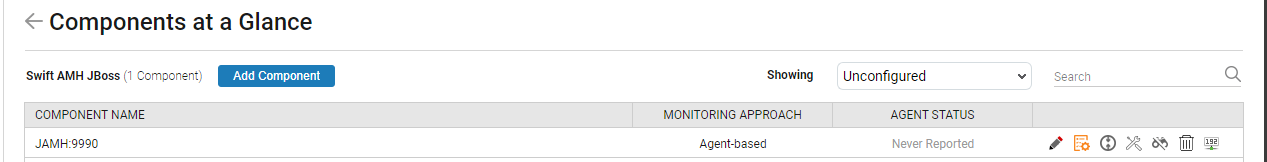

    Figure 2 : Configuring the Swift AMH JBoss component

  7. To collect the performance metrics, you may need to manually configure the tests that are mapped to the Swift AMH JBoss. To configure the tests that need manual configuration, click on the icon in Figure 2. This will lead you to the Specific Test Configuration page where the unconfigured tests for the Swift AMH JBoss will be listed in the Unconfigured Tests list box.

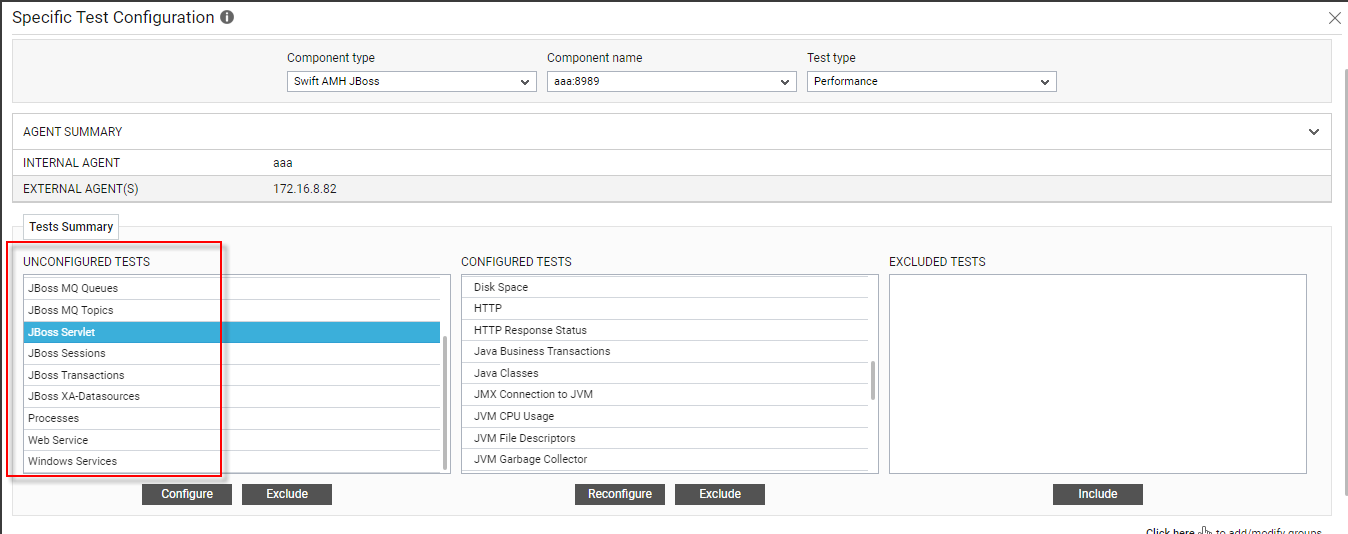

    Figure 3 : The list of unconfigured tests for the Swift AMH JBoss component

  8. The tests specific to Swift AMH JBoss and JVM tests will be listed in CONFIGURED TEST list box.

  9. To know how to configure JBoss specific tests please refer monitoring JBoss AS EAP document.

  10. Once all the tests are configured, switch to the Monitor tab to view the performance metrics reported by the tests.
